HIPER HEALD (FILM HEALD) |
|
 |
|
 FEATURES |
Negentec Co.,Ltd developed film heald with the new process.
In particular, as improving a section, which used to be a problem of existing method, we can now present a much better product.
Also we reduced troubles of a slope caused by heald while weaving, we improved weavability and minimized the rate of inferiority.
|
|
- Improving problems of existing film with self-developed process.
- Diversification of applied weaves with various kinds of films and colors.
- As the thickness of existing plastic was improved, it is useful for high density weaving.
|
|
| SPECIFICATIONS |
|
| Productions Model |
Warp |
Denier |

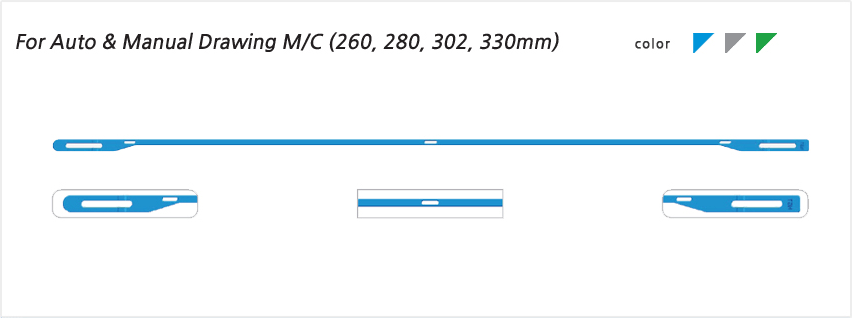

Auto Drawing |
| Thichness(mm) |
Length(mm) |
Eyelet(mm) |
Density(cm) |
Min |
Max |
| 0.25mm |
260.280.302.330 |
5.5 Ąż 1.2 |
30 |
0 |
100 |
O |
| 0.30mm |
260.280.302.330 |
5.5 Ąż 1.2 |
23 |
0 |
300 |
O |
|
|
|
| * By diversifying thickness and color of film fabrics, we broadened the rang of selection. |
|
| APPICATION MOVIE |
|
|
|
| Air jet loom |
|
Water jet loom |
|
|
|
|
(Film heald)
(FILM HEALD)
